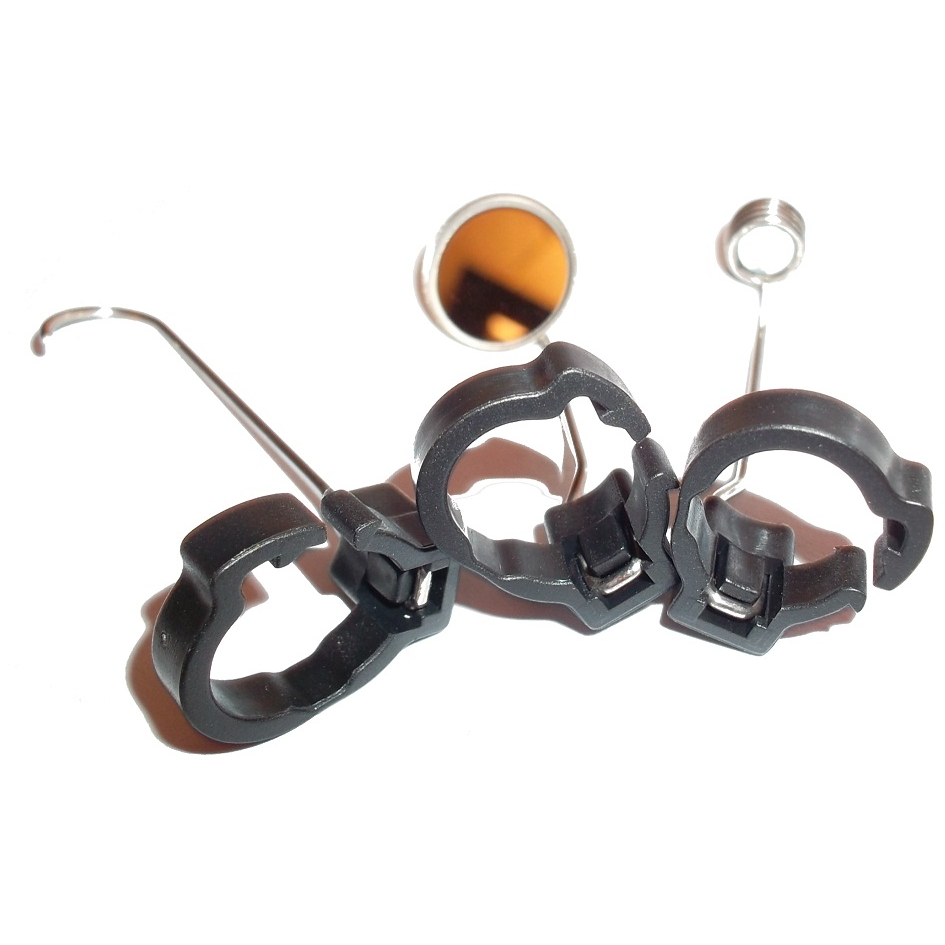

Camera attachment accessories

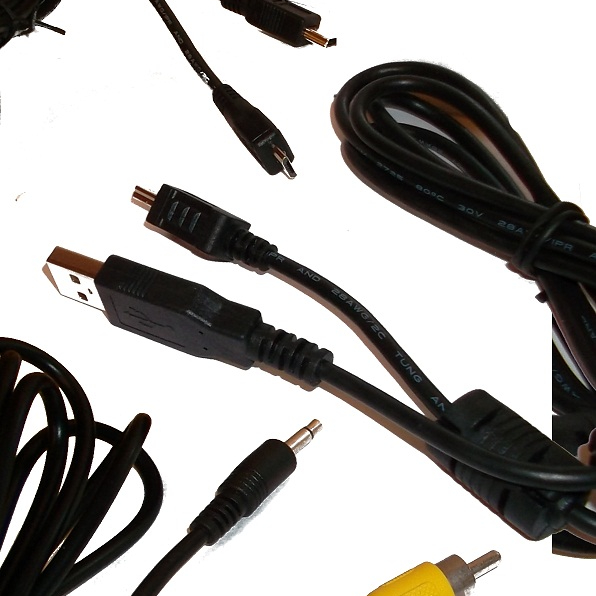

Cables for TV output, detachable screen and computer transfer

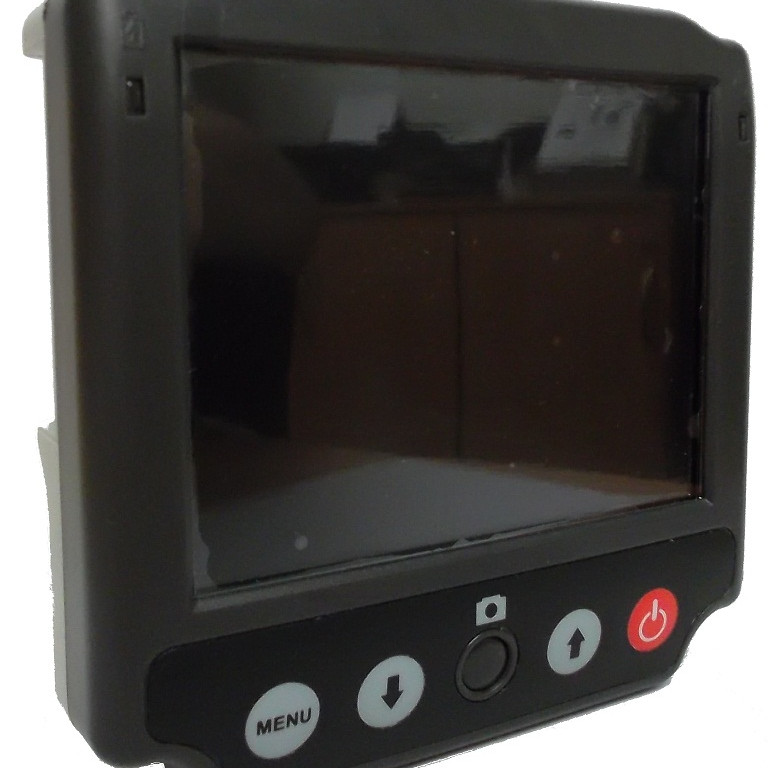

Detachable screen

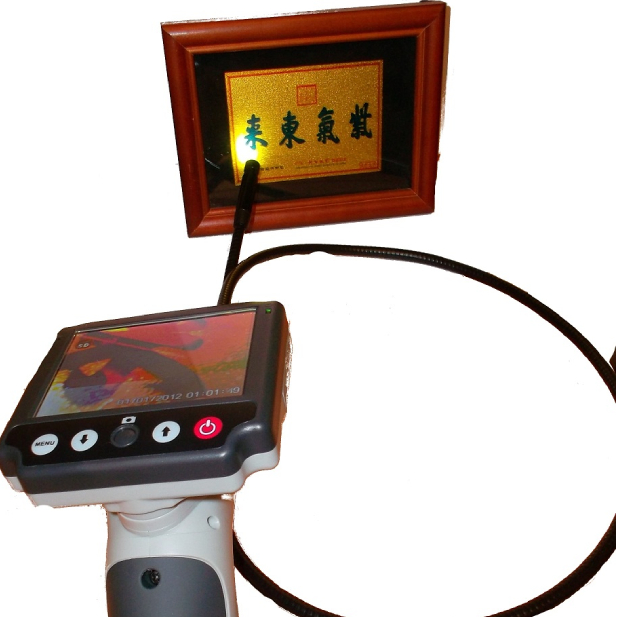

Standard viewing mode

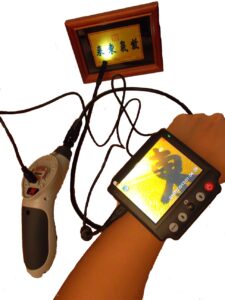

Detached viewing mode
Features:
- Video camera (Video record, Snapshot & Playback)
- 3.5 inch Detachable Colour LCD display
- Easy User Interface
- NTSC, PAL Composite Video Output (TV-Out)
- 2 Adjustable White LED Lights
- Battery ( 4 * 1.5V AA )
- 3 meters extension tube (Optional)
- IP67 Waterproof Lens & Tube
- Supports Up To 32GB MicroSD Card (Optional)
Specifications:
| 3.5 Inch TFT LCD Resolution | 320 X 240 Pixels |
| Lens Sensor Resolution | 640 X 480 Pixels |
| Sensitivity | 1.8V (Lux Sec) |
| Colour Mosaic | RGB Layer Pattern |
| White Comparison | Automatic |
| Exposure To Light | Automatic |
| Video Format | NTSC (Or PAL) Composite Video |
| Camera Illumination | 2 LEDs, White |
| Handler And AVI Port | NTSC (Or PAL) Signal Out |
| Powered By | 4 X 1.5 V AA Batteries |
| Power Consumption | Max 400 mA |
| Ambient/Operating Temperature | 0 To 45°C |
| TV Cable Length | Approx 1.5M |
| Total Length Of Device | 111.0 +- 2.0CM |
| Metal Tube Length | 88.0 +- 2.0CM |
| Minimum Bending Radius | 4.5 CM |
| Diameter Of Camera Head | 10.0 mm (5.9 mm & 5.5 mm For Optional) |
| Lens Coverage | 54° |
| Short Distance Focus | 3 ~ 6 CM |
| Weight Without Accessories | Approx. 500gm |
| SD Card Record Function | Yes (Support Up To 32GB Micro SD Card) |
| Movie Recording | 30FPS @ 720 * 480 (D1) And 30FPS @ 360 * 240 (QVGA) |
| AVI Playback | 30FPS @ 720 * 480 (D1) And 30FPS @ 360 * 240 (QVGA) |
| Connector | TV |

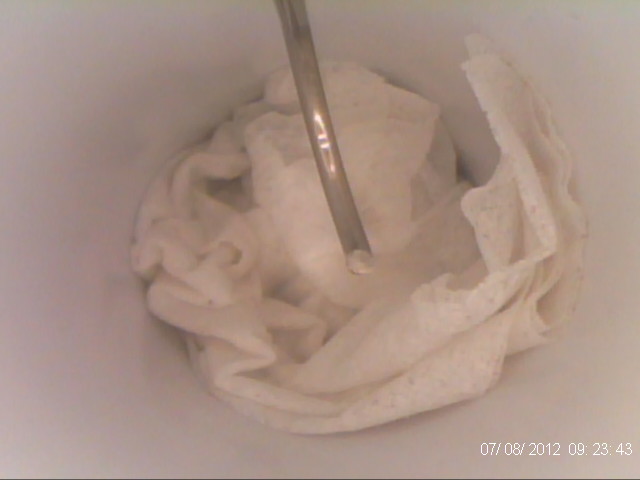

Image sample of clog:
