Functional Tester Kits

Here is a list of our standard kit models for sale.

Model : PP1
a. Model PP1
Specification:
Pneumatic Engagement
Air Supply : 5.0 ~ 7.0 bar
Tested PCBA size : maximize 240×220 (mm)
Probe Board Material : 10mm Thk Antistatic G10(black colour)
Press Plate Material : 15 mm Thk Antistic Acrylic Clear
Probe Board Travel : 10.0 mm
Press Finger Height : 35 mm
Load pogo pin quantity : less than 400 pcs .
Casing height : 50.8 mm ; 101.6 mm
Casing Material : Aluminium 6061; E.G plate
Tester Afford Temperature Range: -40 ~ 90
Tester Surface Treatment : Powder coating .
Tester Weight : 14 ~17 kg

Model : PP2
a. Model PP2
Specification:
Pneumatic Engagement
Air supply : 5~7 bar
Tested PCBA size : maximize 360×290 (mm)
Probe Board Material : 10.0mm Thk Antistatic G10(black colour)
Press Plate Material : 15.0mm Thk Antistic Acrylic Clear
Probe Board Travel : 10.0 mm
Press Finger Height : 35 mm
Load pogo pin quantity : less than 600 pcs .
Casing height : 50.8 mm ; 101.6 mm
Casing Material : Aluminium 6061; E.G plate
Tester Afford Temperature Range: -40 ~ 90
Tester Surface Treatment : Powder coating .
Tester Weight : 17 ~20 kg

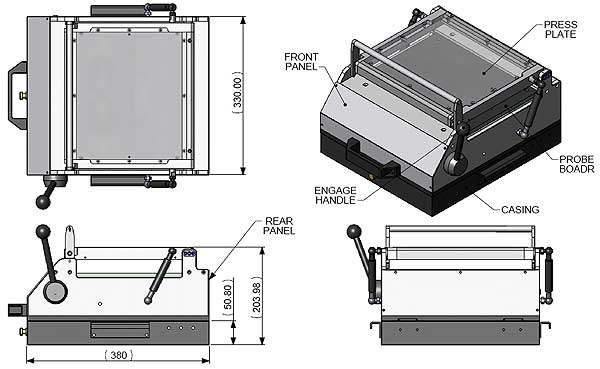

Model : PM1
a. Model PM1
Specification:
Manual Engagement
Tested PCBA size : maximize 240×220 (mm)
Probe Board Material : 10mm Thk Antistatic G10(black colour)
Press Plate Material : 10mm Thk Antistic Acrylic Clear
Probe Board Travel : 10.0 mm
Press Finger Height : 35 mm
Load pogo pin quantity : less than 400 pcs .
Casing height : 50.8 mm ; 101.6 mm
Casing Material : Aluminium 6061; E.G plate
Tester Afford Temperature Range: -40 ~ 90
Tester Surface Treatment : Powder coating .
Tester Weight : 12 ~15 kg

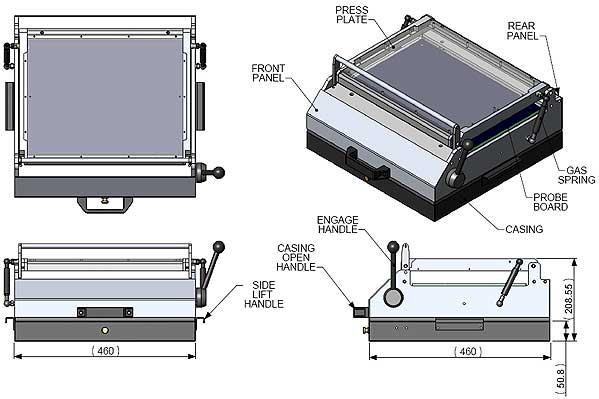

Model : PM2
a. Model PM2
Specification:
Manual Engagement
Tested PCBA size : maximize 360×290 (mm)
Probe Board Material : 10.0mm Thk Antistatic G10(black colour)
Press Plate Material : 15.0mm Thk Antistic Acrylic Clear
Probe Board Travel : 10.0 mm
Press Finger Height : 35 mm
Load pogo pin quantity : less than 600 pcs .
Casing height : 50.8 mm ; 101.6 mm
Casing Material : Aluminium 6061; E.G plate
Tester Afford Temperature Range: -40 ~ 90
Tester Surface Treatment : Powder coating .
Tester Weight : 16 ~19 kg
